BX-Series

Signature high intensity lighting solutions for cultivation and research.

High Intensity LED Grow Light Bars for Cultivation and Research

Designed for growth rooms and chambers, greenhouses, and HPS hybrid installations.

Valoya BX120 - 01
BX_4
Bx-series

rf-series-info
iprating

Dust & humidity resistant
(wet location rated)

lightsettings

Dimmable

tempered glass

Tempered glass cover

easyinstall

Easy to install

heat

Heat directed upwards, away from the plants

High Intensity. Robust. Versatile.

Based on Valoya’s bestseller, the B-Series, this next step in evolution brings countless improvements. The BX-Series are high intensity, robust LED bars designed for grow chambers and multi-tier cultivation. With the light intensity of up to 2.5 µmol/W and the dimming function these bars can be placed anywhere between 10 cm and 4 m above the canopy (4″ – 13′).

The BX-Series is rated IP67 meaning it is completely dust-tight and can withstand water submersion without compromising any functionality. Typical lifetime is 50,000 hours for the light output to drop to 90% of nominal.

Model Power Input
BX120 130 W 220 - 480 VAC
Model Measurements (in) Weight (kg/lb)
BX120 46.3 x 2.9 x 2.3in 4.1kg / 9.0lb

All models – 0-10V, PWM, Dim to Off

BX120
AP67 | Solray385 | Solray X
Efficacy

up to 3.0 µmol/J

CE Marked
RoHS Compliant
Tested and certified to UL & CSA standards

Product Catalog
Get a Quote

BX-Series - An LED Grow Light Bar Designed for Greenhouse and Indoor Growers

The BX-Series is a slim, light, humidity resistant LED grow light bar. A durable metal exterior complete with low-to-mid light intensity, a wide range of spectra customization, and a tempered glass lense, make for the perfect combination of quality and efficiency. With an IP rating of IP67, this grow light is ideal for high humidity growth chambers and multitier cultivation. Designed for cultivation and plant research applications, this LED grow light bar is versatile, with the ability to be placed 4”-13’ above the canopy. The BX-Series is an ideal light bar for indoor growers, greenhouse applications, and multilayer facilities.

Product & Installation Guides

BX120 Solray385 Installation Guide

Dimmer Guide

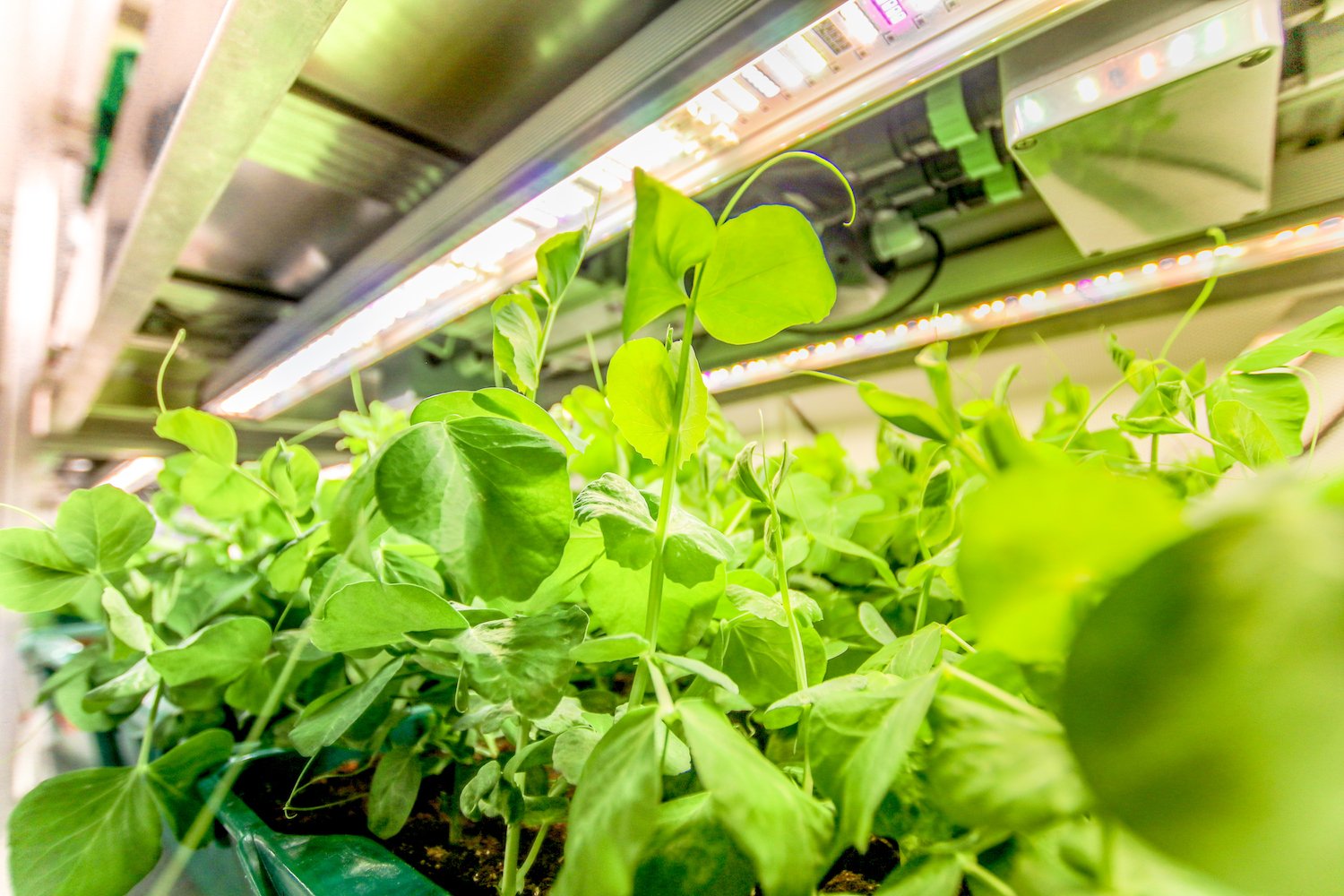

  • BX120_Chamber_5
